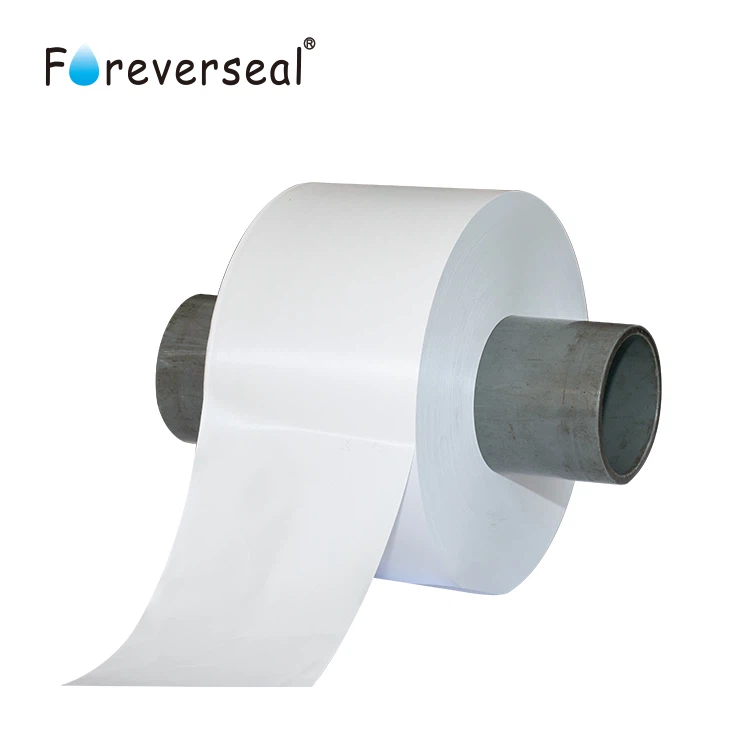

Electric Insulation Ptfe Tape

Electric Insulation PTFE Tape: The Ultimate Solution for Electrical Applications

Electric insulation PTFE tape is a type of adhesive tape made of polytetrafluoroethylene (PTFE) material, which is also known as Teflon. This elastic and lightweight tape is widely used in electrical industries as an electric insulation solution. It is a cost-effective measure for maintaining the safety of electrical equipment and protecting them from high temperatures, moisture, and abrasions.

PTFE tape is an excellent electrical insulator due to its non-conductive properties, which make it resistant to electricity. This tape is widely used in assembling, repairing, and protecting electrical connections, and it is also used to seal cable and wire insulation. Moreover, this tape is extremely resistant to heat, making it perfect for insulating high-temperature applications.

Aside from its ability to resist electrical currents, PTFE tape is waterproof and resistant to chemical corrosion. It offers excellent waterproofing properties and can withstand exposure to moisture and corrosive chemicals that would otherwise cause damage to electrical equipment. This resistance to chemicals and moisture allows PTFE tape to provide durable and long-lasting insulating for electrical equipment.

One of the benefits of using PTFE tape is that it is easy to apply, thanks to its high elasticity and flexibility. It can be used in narrow or small areas where traditional insulation methods cannot fit, and is also easily removable and repositionable. Additionally, PTFE tape is simple to cut, and its clean edges provide a uniform, professional finish, making it suitable for use in a wide range of applications.

Another advantage of PTFE tape is that it is environmentally friendly. It is made of non-toxic materials that do not release any harmful substances into the atmosphere, making it safe for use in electronic devices that are designed to be in close contact with people.

In conclusion, PTFE tape is a versatile and affordable solution for electric insulation. Its resistance to electricity, heat, chemicals, and moisture make it a must-have product for the electrical industry. Additionally, its ease of application, flexibility, and environmental friendliness make it a popular choice for those in need of a reliable and safe insulation tape.





● PTFE(Polytetrafluorethylene)

● Expanded, natural or white

● Thickness: 0.102mm

● Width: 4mm - 200mm

● Standard density: 0.54g/cm3





● High temperature and chemical resistance

● Flammability resistivity

● High porosity results in superior dielectric properties

● High tensile strengths that support fast wrapping speeds

● Long joint free lengths

● RoHS and REAH compliant





● Wire and cable insulation for extreme chemical and thermal environments

● Binder tape in cable constructions and wire harnesses

● Dielectric material in coaxial cables

● Convoluted hose constructions

● And more





Thickness	0.0040"
	(0.102mm)
Tolerance	±0.00025"
	±0.006mm
Width	4 - 200mm
Density	0.54g/cm3
Tensile Strength (minimum)	12 MPa
Elongation (minimum)	50%
Joint Free Lengths	> 200m







FAQ:



Customer: What is the ptfe film popular thickness?

Foreverseal: 0.051mm, 0.127mm, 0.153mm are more popular



Customer: What's your main product?

Foreverseal: We produce ptfe tape for pipe sealing, and ptfe film for cable insulation



Customer: How many workers do you have?

Foreverseal: Around 70 workers currently
