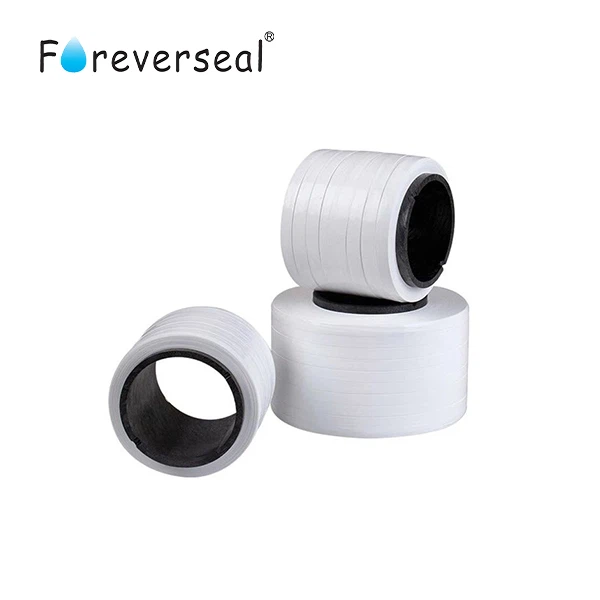

Expanded P.T.F.E. Cable Wrapping Tape

Expanded P.T.F.E. Cable Wrapping Tape is an electrical insulator used in making high-grade cable and wire. It is revered as a superior insulator for many qualities, including low dissipation, wide temperature tolerance, high-frequency stability, low smoke generation, resistance, dielectric constants and its resistance to flame, chemicals, solvents, moisture and volume.





● PTFE(Polytetrafluorethylene)

● Expanded, natural or white

● Thickness: 0.102mm

● Width: 4mm - 200mm

● Standard density: 0.8g/cm3





● High temperature and chemical resistance

● Flammability resistivity

● High porosity results in superior dielectric properties

● High tensile strengths that support fast wrapping speeds

● Long joint free lengths

● RoHS and REAH compliant





● Wire and cable insulation for extreme chemical and thermal environments

● Binder tape in cable constructions and wire harnesses

● Dielectric material in coaxial cables

● Convoluted hose constructions

● And more





Thickness	0.0040"
	(0.102mm)
Tolerance	±0.00025"
	±0.006mm
Width	4 - 200mm
Density	0.8g/cm3
Tensile Strength （minimum）	12 MPa
Elongation （minimum)	50%
Joint Free Lengths	> 200m





Slitting and packaging:

Slitting width of 4mm to 200mm, the winding roll maximum OD 300mm, the plastic cores ID 76mm with flat pad and step pack/solid pad.



Storing Recommendations for Unsintered Tapes

For maximum shelf life, it is recommended that PTFE films are stored in a clean, temperature-controlled environment at or below 21C with relative humidity below 50%.



FAQ:



Customer: When did your company establish?

Foreverseal: In 2009



Customer: What is PTFE?

Foreverseal: PTFE has amazing chemical resistance, corrosion resistance, strong acid and strong alkali resistance, water and various organic solvents resistance. PTFE has excellent thermal and electrical insulation properties.



Customer: Can we place small quantity as trial order?

Foreverseal: Yes, you can order minimum order quantity of 100kgs
