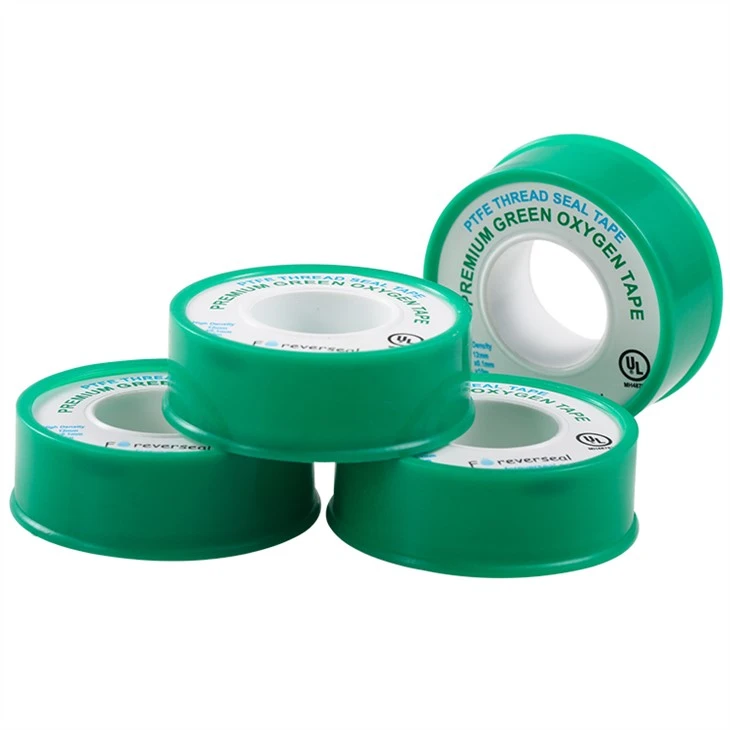

Green Oxygen Line Ptfe Thread Seal Tape



Green oxygen line ptfe thread seal tape is a maximum density designed specifically for oxygen lines. This special thread sealing tape is manufactured from PTFE resin mixed with a small amount of solvent. For normal applications it does not matter if the solvent is not removed from the finished product. However, when operating in a pure oxygen environment remaining volatiles can react with the oxygen and cause an explosion. So our green oxygen line ptfe thread seal tape is put through a rigorous process to remove the solvent. It is a thick, maximum-density thread sealing tape ensuring an effective seal. Also, as an important safety feature, and it is pigmented green to ensure that the fitter or inspector can easily recognize that the tape is compatible with oxygen.





Width	12mm (1/2")
Thickness	0.1mm
Length	13.2m
Density	1.3g/cm3
Tape color	Green
Spool	56mm OD, 25mm ID
Packing	Option A: 10pcs/shrink, 250pcs/box, 1000pcs/ctn Option B: 10pcs/shrink, 100pcs/box, 1000pcs/ctn Option C: 10pcs/box, 1000pcs/ctn (Packing cost A < B < C) Other customized packing allowed.
MOQ	20000 pcs
Delivery time	30-40 days after getting your prepayment





Composition	Min. 99% virgin PTFE, Max. 1% pigment
Pressure Rating	up to 10,000PSI
Temp.Range	-268C to +260C
Tensile Strength	15 N/mm2
Elongation	Min 50%
Storage	Unlimited shelf life(less than 70F )/50% relative humidity out of direct sunlight
Flammability	Non-flammable















Customer: What’s the recommend size for gas pipe sealing?

Foreverseal: We normally suggest you take 12mm*0.1mm*10m*1.0g/cm3



Customer: How many workers do you have?

Foreverseal: Around 70 workers currently



Customer: Do you have display box for the product?

Foreverseal: Yes, we have, but the packing cost is more expensive
