Thread Seal Tape

FOREVERSEAL thread seal tape is manufactured from 100% virgin PTFE (Polytetrafluoroethylene) resin - no recycled content, no fillers. PTFE's unique molecular structure gives it exceptional chemical inertness, ultra-low friction, and outstanding thermal stability, making it the industry-standard material for threaded pipe connections worldwide.

Our thread seal tape delivers a tight, leak-free seal on metal and plastic threaded fittings across plumbing, HVAC, industrial piping, and chemical processing applications. With a pressure rating up to 3,000 PSI and a working temperature range from -190°C to +260°C, it performs where other sealing methods fail.



Quality Starts at the Source: Premium PTFE Resin from China's Top Suppliers

We source our PTFE resin exclusively from DongYue and JuHua - China's two largest and most established PTFE manufacturers. Their resin delivers measurably higher consistency in molecular weight distribution and extrusion performance compared to commodity-grade alternatives.

While this premium raw material carries a cost premium of 10% or more, the payoff is clear: fewer production defects, more uniform tape thickness, and sealing performance our customers can count on every time. We don't cut corners at the source - because quality can't be added later.



Where Thread Seal Tape Is Used - Real-World Applications

FOREVERSEAL thread seal tape has been trusted by plumbers, HVAC technicians, and industrial maintenance teams since 2009. Here are the most common applications where our tape delivers proven results:

• Residential & Commercial Plumbing - Seals water supply fittings, drain connections, and fixture installations on copper, brass, steel, and PVC threads.
• HVAC & Refrigeration - Provides leak-tight seals on refrigerant line fittings that must withstand pressure cycling and temperature extremes.
• Industrial Piping - Used in chemical processing plants, food & beverage production lines, and water treatment facilities where chemical resistance is essential.
• Gas Line Connections - Meets the requirements for gas-rated PTFE tape (see our dedicated Gas Line PTFE Tape for UL/CSA certified options).
• Automotive & Machinery - Seals hydraulic and pneumatic threaded connections in manufacturing equipment and vehicle assembly.



Why FOREVERSEAL Is Trusted in PTFE Sealing

• 15+ Years of PTFE Manufacturing - Established in 2009, we've spent over a decade refining our extrusion, calendering, and winding processes specifically for PTFE tape and film.
• Direct Raw Material Partnership - Exclusive sourcing from DongYue and JuHua (China's top PTFE resin producers) gives us material consistency that smaller manufacturers simply cannot match.
• Serving 80+ Countries - Our products reach distributors, contractors, and OEMs across Europe, the Americas, the Middle East, and Asia-Pacific.
• In-House Quality Lab - Every production batch undergoes density, tensile, elongation, and dimensional testing
• Custom Specification Capability - Beyond standard sizes, we engineer custom width, thickness, density, and packaging configurations to meet your market's exact requirements.





�� Spool (Inner Core) Color Customization

The spool is the first thing your customer sees when they pick up a roll. We offer a full range of customization options:

Customization Item	Options	Details
Spool Color	White, Yellow, Red, Blue, Green, Orange, Black + Custom Pantone Colors	Our spools are injection-molded in-house, allowing precise color matching. Provide your Pantone reference or color sample - we'll match it.
Spool Material	PP (Polypropylene), PS (Polystyrene)	Standard PP is cost-effective and widely used. PS offers higher rigidity for industrial-grade presentation.
Spool Dimensions	Outer Diameter (OD): 50mm/56mm/66mm/76mm/86mm/94mm Inner Diameter(ID): 25mm / 30mm / 33mm	Spool dimensions selection affects the length it can wind. Choose the standard that matches your target market's retail fixtures.



✏️ LOGO Printing & Branding Techniques

We support multiple branding methods to match your budget, market positioning, and visual requirements:

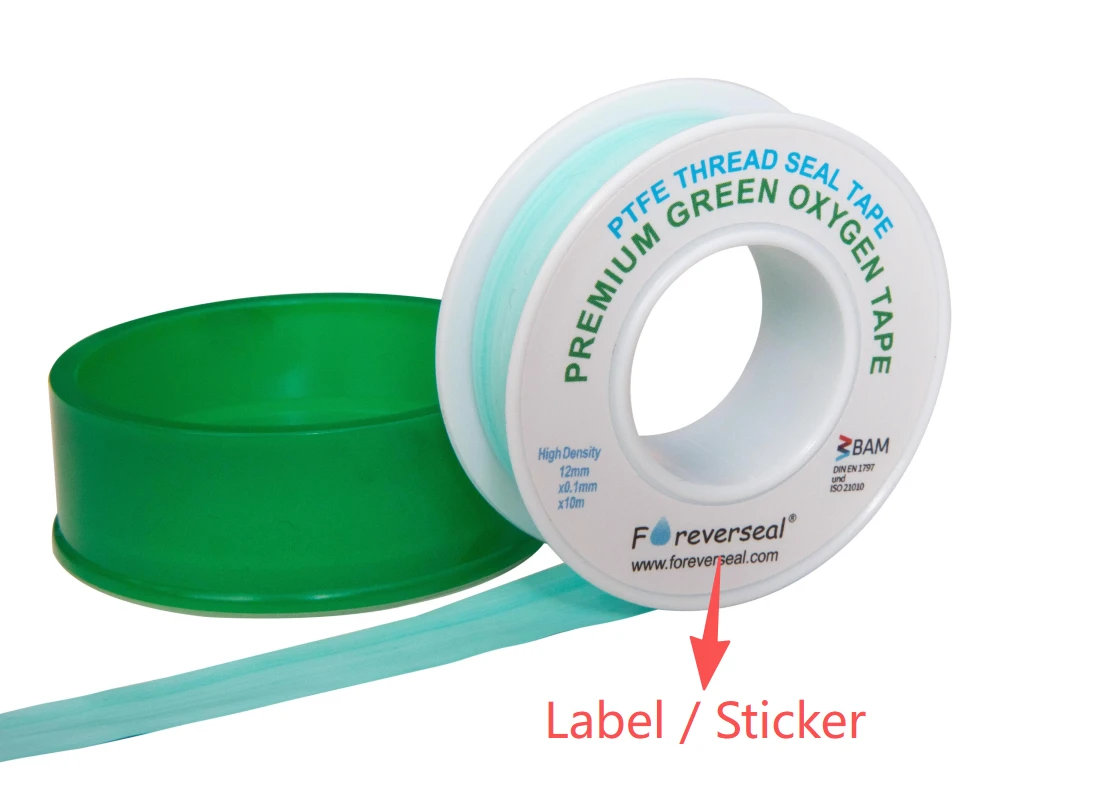

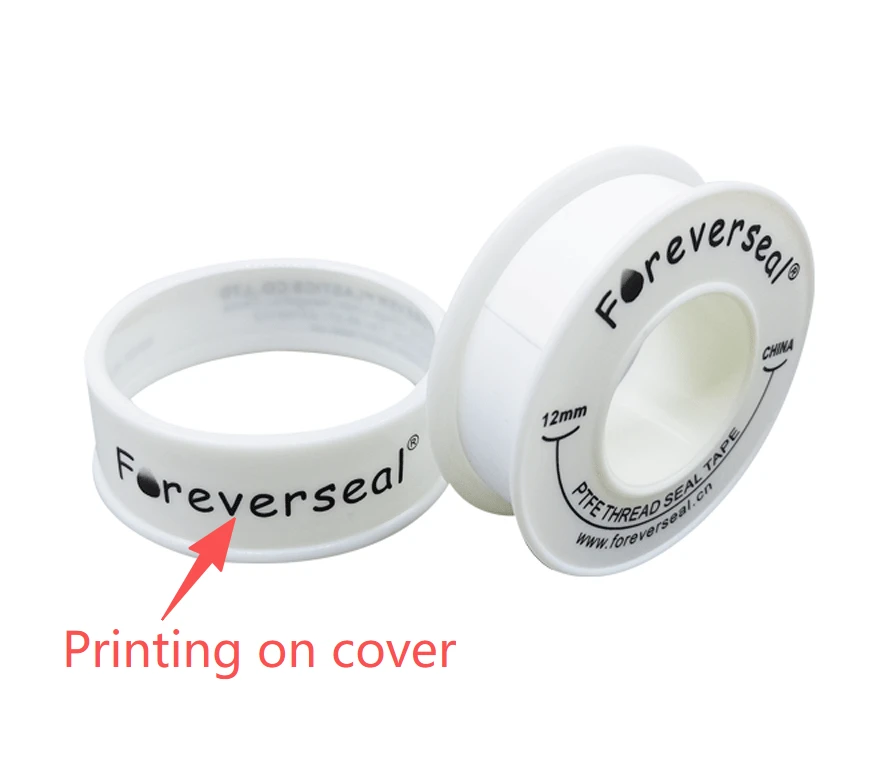

Printing Method Suitable For Picture Marks Pad Printing (on spool) Simple color logos, small text, barcode on spool surface high output, cost-effective. Curved surface printing (on cover) Simple color logos, small text, barcode on cover surface Middle cost, low output. Engraving / Carving Simple logos, small text on spool surface, avoid blurry printing Middle cost, ideal for large-volume orders. Label / Sticker (on spool/cover) Complicated design, colorful words, flexible design changes Costly, but beautiful appearance



�� Packaging Customization

Beyond the spool, your brand experience extends to every layer of packaging:

Shrink Wrap - Economic packing way for distribution.

Individual Box - Full-color printed cardboard box (10pcs/box or custom) with your branding, barcode, and regulatory compliance marks

Outer Carton - Branded master carton with your company marking, shipping marks, and handling icons

Blister Card - Several rolls product into a hanging type blister card, suitable for supermarket.

Barcode / QR Code - Custom barcode (EAN/UPC) or QR code printed on packaging for retail scanning and digital engagement



�� Full OEM/ODM Specification Options

Parameter	OEM Range	Notes
Width	12mm–25mm (1/2"–1")	Custom widths available
Thickness	0.075mm–0.25mm	Thicker tape for heavy-duty applications
Length	Any length from 5m to 50m	Popular sizes: 10m, 12m, 15m, 20m
Density	0.25 g/cm³ (low) to 1.5g/cm³ (high)	Density determines tape feel and target application
Color	White, Yellow, Green, Blue, Pink, Gray	Different colors are used for different Application Scenarios
MOQ	Starting from 20,000 pcs for standard specs; custom specs may vary	Lower MOQ negotiable for long-term partners



�� Why Partner with FOREVERSEAL for OEM/ODM?

One-stop production - Raw material to finished, branded product under one roof

No middlemen - Direct factory pricing with transparent cost breakdown

15+ years of export experience - We understand documentation, compliance, and logistics for 80+ country markets

English-speaking team - Direct communication with our sales engineers, no language barrier

Sample before commitment - We provide free samples with your branding for market testing before full production orders





Width	12mm (1/2")
Thickness	0.075mm
Length	6.6m(260''), 10m, 12m, 13.2m(520''), 15m, 20m (Any length you need)
Density	0.25g/cm3 - 0.4g/cm3
Tape color	White
Spool	56mm OD, 25mm/30mm/33mm ID
Packing	Option A: 10pcs/shrink, 250pcs/box, 1000pcs/ctn Option B: 10pcs/shrink, 100pcs/box, 1000pcs/ctn Option C: 10pcs/box, 1000pcs/ctn (Packing cost A < B < C) Other customized packing allowed.
MOQ	20000 pcs
Delivery time	30-40 days after getting your prepayment
Composition	100% virgin PTFE
Pressure Rating	up to 3,000PSI
Temp.Range	-190C to +260C
Tensile Strength	8 N/mm2
Elongation	Min 25%
Storage	Unlimited shelf life(less than 70F )/50% relative humidity out of direct sunlight
Flammability	Non-flammable













FAQ:



Q: Can thread seal tape be used on gas lines?

A: Standard white PTFE tape is rated for water and general-purpose sealing. For gas lines, use our dedicated Gas Line PTFE Tape, which meets UL/CSA gas-rated certification requirements.



Q: What's the difference between low-density and high-density PTFE tape?

A: Low-density tape (0.25 g/cm³) is thicker and easier to wrap by hand - ideal for residential plumbing. High-density tape (0.4 g/cm³) is thinner and denser - better suited for industrial and high-pressure applications where a tighter, more compact seal is needed.



Q: Does thread seal tape expire?

A: PTFE is chemically inert and non-degrading. When stored below 70°F (21°C) away from direct sunlight, our thread seal tape has an unlimited shelf life.



Q: Can I use thread seal tape on plastic threads?

A: Yes. PTFE tape works on both metal (brass, steel, copper) and plastic (PVC, CPVC, nylon) threaded fittings. For plastic-to-plastic connections, use gentle tightening force to avoid cracking the fitting.



Foreverseal is a leading manufacturer of PTFE Tape and PTFE Film since 2009, providing first-class products and quality services. our well-equipped facilities and professional quality control through all stages of production enable us to guarantee total customers'satisfaction.



We believe our good quality products and professional customer service can maintain long term stable business with our clients. If you are interested in our goods, please contact us freely. Welcome to visit our factory!
